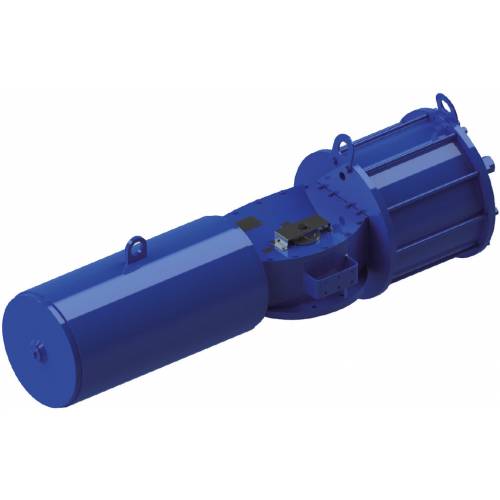

Attuatore pneumatico semplice effetto SR Heavy Duty acciaio carbonio

  • benefits
  • caratteristiche
  • materiali
  • diagrammi e coppie di spunto
  • specifiche
  • accessori
  • documenti

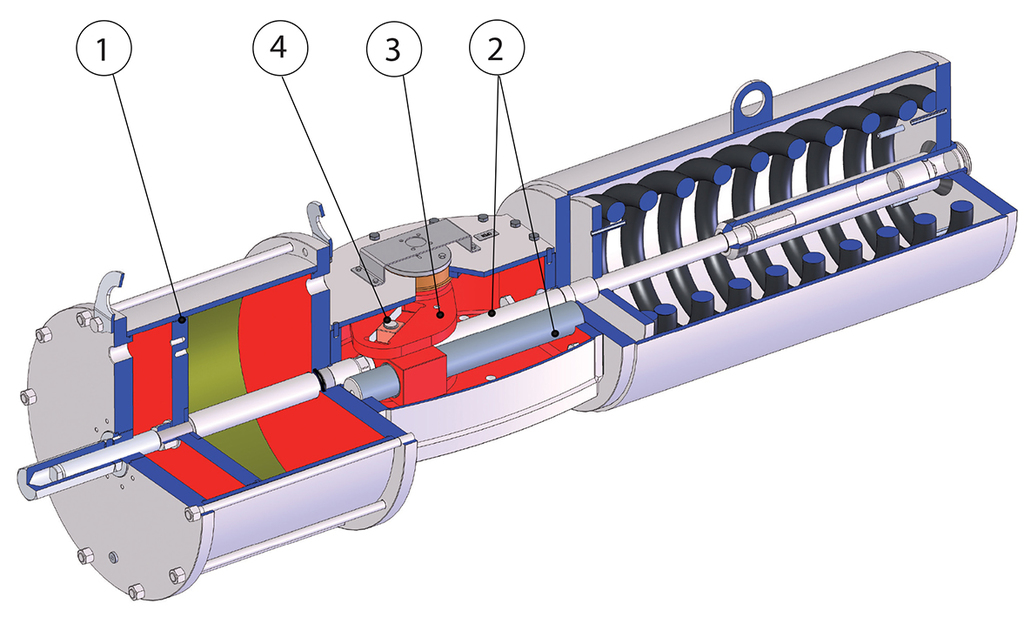

1 Fasce di scorrimento realizzate in PTFE caricate Graphite
Minor attrito tra pistone e cilindro
Si evita l’incollaggio delle fasce di scorrimento al cilindro anche dopo lunghi periodi di fermo
Riduce l’effetto “stick-slip”

2 Stelo e barra di guida realizzati in acciaio cromato con durezza circa 200 HB
Maggiore resistenza alla corrosione
Minor attrito tra stelo, barra di guida e boccole di scorrimento con conseguente minor usura dei pezzi

3 Sistema di conversione del moto da lineare a rotatorio separato dal fluido di comando dell’attuatore.

Possibilità di alimentare l’attuatore con Gas Tecnici
Si evitano atmosfere esplosive

4 Scotch yoke con attrito volvente (trasformazione del movimento da lineare in rotatorio mediante sistema privo di ingranaggi).

Minor attrito tra pistone e albero con conseguente minor usura dei pezzi
Momento torcente potenziato in fase di apertura e chiusura

Boccole in bronzo
Garantiscono una minor usura rispetto a boccole di altri mteriali

Certificato ATEX

Ne consente l'installazione in presenza di ambiente potenzialmente esplosivo

Certificato SIL 3
Elevato livello di sicurezza funzionale garantito

Certificato PED (IN PROGRESS)
Conformità alle norme  di sicurezza europee per i dispositivi in pressione

Dati tecnici:
Coppie Nominali: da 2000 Nm circa a 30.000 Nm.
Flange secondo DIN / ISO 5211 , DIN 3337.
Angolo di rotazione nominale: 90° con regolazione della corsa -5° +95°.
Pressione di alimentazione: da 3bar a 8,5bar (per coppie erogate, vedi tabelle).
Per la versione doppio effetto il momento torcente è direttamente proporzionale alla pressione di alimentazione dell’attuatore.
Per la versione semplice effetto il momento torcente di ritorno (mancanza di alimentazione nell’attuatore) dipende solo dall’azione della molla ed è indipendente dalla pressione di alimentazione.
Esecuzioni disponibili: Doppio Effetto, ritorno a molla normalmente chiuso (NC), ritorno a molla normalmente aperto (NO).
Configurazioni corpo centrale: Scotch Yoke simmetrica (symmetrical) oppure Scotch Yoke asimmetrica (canted)

Condizioni di esercizio:
Range di temperatura: Versione standard: -20° C a +80° C (Materiale guarnizioni: NBR) .
Versione speciale: alta temperatura da -20° C a +150° C (Materiale guarnizioni: FKM).
Fluido di alimentazione: aria compressa filtrata, non necessariamente lubrificata, gas inerti, gas tecnici
Per temperature inferiori a 0 ° C usare aria secca.
In caso di utilizzo di aria lubrificata utilizzare olio non detergente compatibile con il materiale di tenuta.

Norme di progettazione:
Progettazione secondo EN 15714-3 , ISO 5211 , ISO 12490.

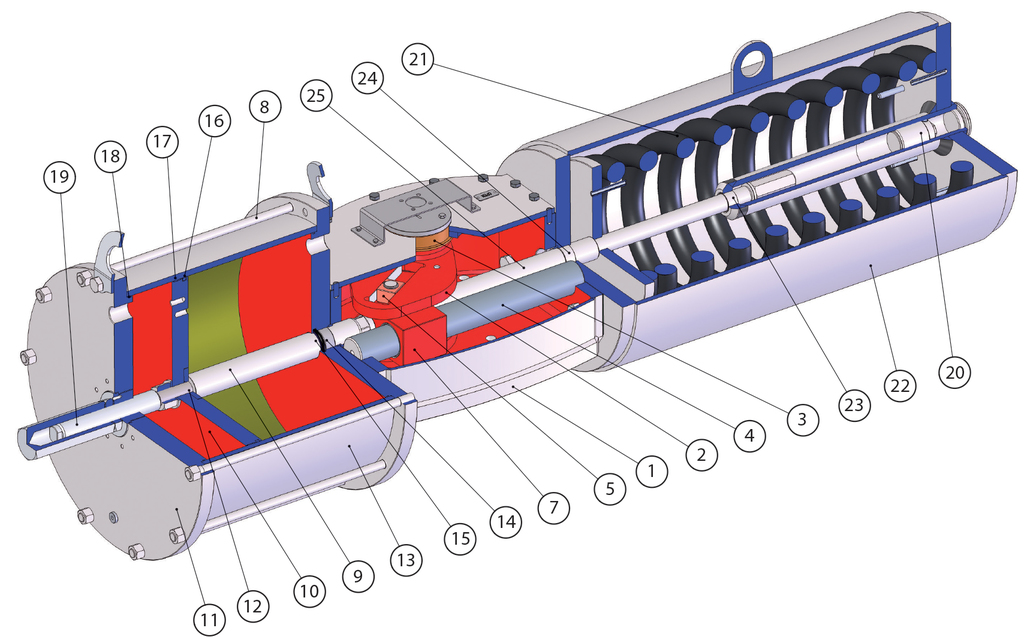

PosDescrizioneMateriali
1Corpo centraleAcciaio al carbonio
2ForcellaAcciaio al carbonio
3Boccola forcella Bronzo
4Barra di guidaLega di acciaio (cromato)
5Bronzina di scorrimentoBronzo
6Valvola di sfiato (non illustrata) Ottone
7Blocco di guida Acciaio al carbonio
8Tirante Lega di acciaio
9Stelo pistone Lega di acciaio (cromato)
10Pistone Acciaio al carbonio
11Flangia  Acciaio al carbonio
12O-ringNBR
13Cilindro Acciaio al carbonio (nichelato)
14Boccola stelo pistone Acciaio+bronzo+PTFE
15Guarnizione NBR+Poliuretano
16O-ringNBR
17Anello di scorrimento PTFE + graphite
18O-ringNBR
19Grano di regolazione  Lega di acciaio
20Grano di regolazioneLega di acciaio
21Molla  Lega di acciaio
22Pacco molleAcciaio al carbonio
23Boccola  Acciaio + bronzo + PTFE
24Boccola   Acciaio + bronzo + PTFE
25Stelo pacco molla Lega di acciaio (cromato)

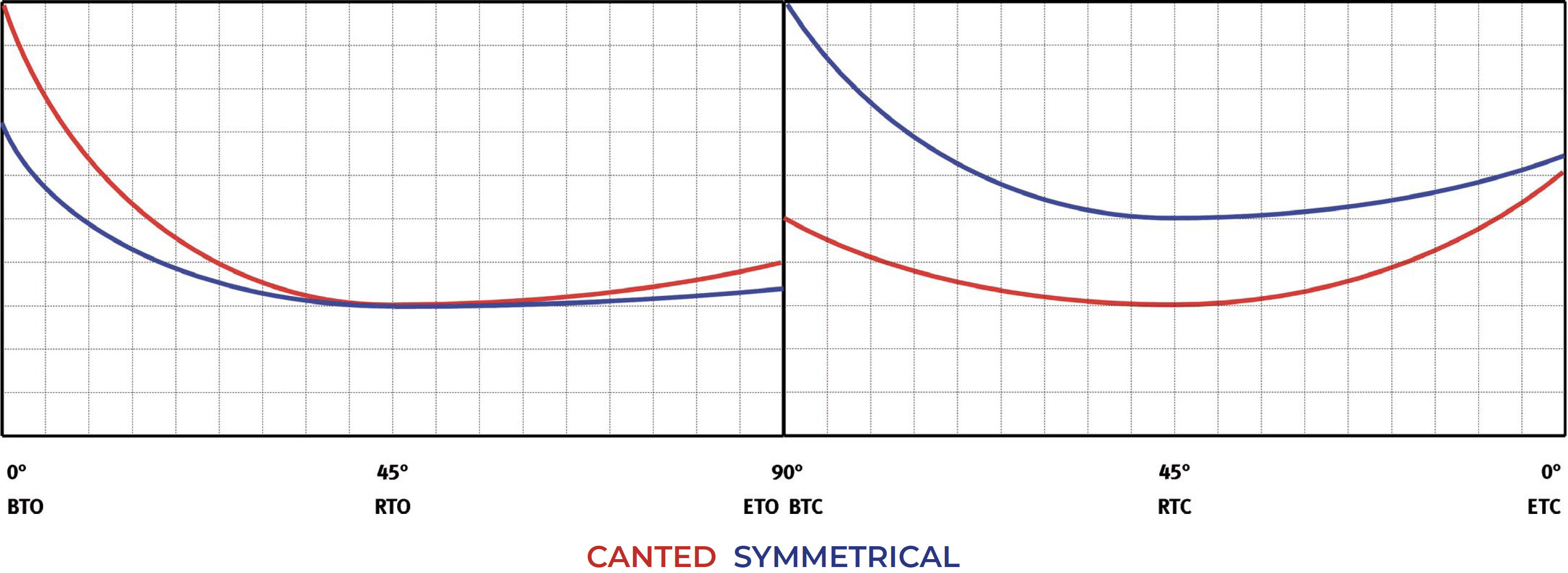

Semplice Effetto Normalmente Chiuso – Tabella coppie (momenti torcenti)

Model NumberMax torque Nm3 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.000





SRHG-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
SRHG-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
SRHG-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
SRHG-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm3 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0001.4413933832.3361.1231.475
SRHG-085S-385A-C29.0002.4211.1381.4542.3261.1161.464
SRHG-085S-435A-C29.0003.5431.8482.6812.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.000





SRHG-085S-435A-C39.0002.6529249153.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.000





SRHG-085S-435A-C59.0002.2955445254.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.0005.8342.2812.3176.3152.7643.228
SRHG-100S-585A-C118.0007.6793.5114.3336.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.000





SRHG-100S-535A-C218.0004.5899989567.4413.4954.460
SRHG-100S-585A-C218.0006.4342.6942.9727.4543.5034.474
SRHG-100S-535A-C318.000





SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.000





SRHG-130S-535A-C132.0005.4841.6691.6409.4664.6946.407
SRHG-130S-585A-C132.0007.9093.5544.2919.4834.7056.426
SRHG-130S-635A-C132.00010.5645.2537.1939.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.0006.9501.6401.58211.7255.6267.374
SRHG-130S-635A-C232.0009.6054.0404.48411.7575.6467.409
SRHG-130S-685A-C232.00012.4245.8767.56611.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.000





SRHG-130S-635A-C532.0008.0543.2223.36112.6866.4088.942
SRHG-130S-685A-C532.00010.8745.0816.44312.6686.3968.922
SRHG-130S-735A-C532.00013.9077.0109.75812.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.00011.9834.5884.56916.9438.17910.802



Model NumberMax torque Nm3,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0003.0706967092.0081.2112.340
SRHG-085C-385A-C29.0004.8681.4291.7052.0001.2052.324
SRHG-085C-435A-C29.0006.9252.2412.8441.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.0005.5261.3361.4113.2541.9503.713
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0004.9661.0941.1013.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.0009.6561.9761.9716.4063.8037.076
SRHG-100C-585A-C218.00013.0323.4443.8416.4173.8117.099
SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.0009.8992.1141.6868.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.00011.8332.8082.9338.1245.00710.167
SRHG-130C-585A-C132.00016.2714.6185.3918.1385.01710.196
SRHG-130C-635A-C132.00021.1266.5448.0818.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.00014.7653.1783.17610.0826.07311.701
SRHG-130C-635A-C232.00019.6215.2315.86510.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.00017.1864.5024.99210.8756.79214.189
SRHG-130C-685A-C532.00022.3566.5767.85610.8596.78014.156
SRHG-130C-735A-C532.00027.9178.77610.93710.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.00024.8976.2206.69614.5638.80817.139

Model NumberMax torque Nm3,5 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0001.9558359452.3361.1231.475
SRHG-085S-385A-C29.0003.1001.5692.1972.3261.1161.464
SRHG-085S-435A-C29.0004.4102.3923.6282.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.000





SRHG-085S-435A-C39.0003.5191.5641.8633.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.000





SRHG-085S-435A-C59.0003.1621.3291.4734.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.0005.4451.9081.8916.3112.7623.225
SRHG-100S-535A-C118.0007.3943.3274.0226.3152.7643.228
SRHG-100S-585A-C118.0009.5444.7046.3726.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.000





SRHG-100S-535A-C218.0006.1492.5012.6617.4413.4954.460
SRHG-100S-585A-C218.0008.2993.9115.0117.4543.5034.474
SRHG-100S-535A-C318.0005.5482.0311.4469.1394.3865.400
SRHG-100S-585A-C318.0007.5503.1863.3869.1394.3865.400
SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.0006.3802.5112.25210.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.0004.9721.1241.0809.4624.6916.403
SRHG-130S-535A-C132.0007.5353.3103.8829.4664.6946.407
SRHG-130S-585A-C132.00010.3625.1256.9729.4834.7056.426
SRHG-130S-635A-C132.00013.4547.07410.3529.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.0009.4033.9054.26311.7255.6267.374
SRHG-130S-635A-C232.00012.4955.9227.64311.7575.6467.409
SRHG-130S-685A-C232.00015.7888.01111.24211.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.0007.8523.0813.14012.6556.3888.908
SRHG-130S-635A-C532.00010.9455.1266.52012.6866.4088.942
SRHG-130S-685A-C532.00014.2377.21810.11912.6686.3968.922
SRHG-130S-735A-C532.00017.7799.44513.99012.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.00012.3134.8344.93016.9638.19210.824
SRHG-130S-735A-C632.00015.8557.1988.80116.9438.17910.802



Model NumberMax torque Nm4 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0003.8781.0321.1562.0081.2112.340
SRHG-085C-385A-C29.0005.9341.8512.2962.0001.2052.324
SRHG-085C-435A-C29.0008.2862.7753.5981.9961.2022.315
SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.0006.8871.8932.1653.2541.9503.713
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0006.3271.6671.8553.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.00010.5642.4162.4745.4533.0955.117
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.0008.8551.9791.7136.5433.8337.076
SRHG-100C-535A-C218.00012.1063.0663.3296.4063.8037.076
SRHG-100C-585A-C218.00015.6364.3325.1556.5433.8337.076
SRHG-100C-535A-C318.00010.8772.4482.1837.8514.6158.491
SRHG-100C-585A-C318.00014.4263.6803.9847.8514.6158.491
SRHG-100C-535A-C418.0009.0611.8231.2618.8815.36510.614
SRHG-100C-585A-C418.00012.6103.0553.0638.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.00010.4552.1732.1698.1205.00410.159
SRHG-130C-535A-C132.00015.0544.1304.7178.1245.00710.167
SRHG-130C-585A-C132.00020.1226.1487.5258.1385.01710.196
SRHG-130C-635A-C132.00025.6648.33210.5948.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.00018.6174.8225.30910.0826.07311.701
SRHG-130C-635A-C232.00024.1587.0508.37910.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.00016.1824.0914.43610.8496.77214.134
SRHG-130C-635A-C532.00021.7246.3257.50610.8756.79214.189
SRHG-130C-685A-C532.00027.6368.66610.78110.8596.78014.156
SRHG-130C-735A-C532.00033.99711.16714.30410.8426.76714.121
SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.00024.6166.1046.54114.5818.82117.175
SRHG-130C-735A-C632.00030.9778.68810.06414.5638.80817.139

Model NumberMax torque Nm4 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.000





SRHG-085S-335A-C29.0002.4691.1691.5072.3361.1231.475
SRHG-085S-385A-C29.0003.7791.9972.9392.3261.1161.464
SRHG-085S-435A-C29.0005.2772.9334.5762.3211.1131.459
SRHG-085S-335A-C39.000





SRHG-085S-385A-C39.0002.8881.1411.1733.7881.8052.345
SRHG-085S-435A-C39.0004.3862.1222.8103.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.0002.5327967844.1102.0102.698
SRHG-085S-435A-C59.0004.0291.8942.4214.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.0003.4781.3261.3205.0162.4353.238
SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.0004.7461.1651.1276.3362.7793.252
SRHG-100S-485A-C118.0006.7272.8893.2936.3112.7623.225
SRHG-100S-535A-C118.0008.9554.3295.7286.3152.7643.228
SRHG-100S-585A-C118.00011.4105.8828.4116.3272.7733.242
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.000





SRHG-100S-485A-C218.0005.4821.9481.9327.4383.4924.456
SRHG-100S-535A-C218.0007.7103.5314.3677.4413.4954.460
SRHG-100S-585A-C218.00010.1655.0977.0507.4543.5034.474
SRHG-100S-535A-C318.0007.0102.8742.8639.1394.3865.400
SRHG-100S-585A-C318.0009.2974.1935.0799.1394.3865.400
SRHG-100S-535A-C418.0005.8402.1991.72910.3635.1516.750
SRHG-100S-585A-C418.0008.1273.5183.94510.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.0006.6582.7252.9239.4624.6916.403
SRHG-130S-535A-C132.0009.5874.6326.1259.4664.6946.407
SRHG-130S-585A-C132.00012.8156.6729.6539.4834.7056.426
SRHG-130S-635A-C132.00016.3448.88413.5119.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.0008.6283.3693.41611.7085.6157.356
SRHG-130S-585A-C232.00011.8565.5116.94411.7255.6267.374
SRHG-130S-635A-C232.00015.3857.75710.80211.7575.6467.409
SRHG-130S-685A-C232.00019.15110.12614.91811.7385.6347.388
SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.0007.0772.3222.29312.6386.3778.889
SRHG-130S-585A-C532.00010.3054.7145.82112.6556.3888.908
SRHG-130S-635A-C532.00013.8356.9649.67912.6866.4088.942
SRHG-130S-685A-C532.00017.6009.33313.79512.6686.3968.922
SRHG-130S-735A-C532.00021.65111.86818.22312.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.00011.9114.5124.49016.9828.20410.845
SRHG-130S-685A-C632.00015.6777.0828.60616.9638.19210.824
SRHG-130S-735A-C632.00019.7289.67713.03416.9438.17910.802

Model NumberMax torque Nm4,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.000





SRHG-085C-335A-C29.0004.7431.3211.5892.0821.2462.406
SRHG-085C-385A-C29.0006.9252.0782.6962.0821.2462.406
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.0005.8111.4401.4943.4272.0123.709
SRHG-085C-435A-C39.0008.2952.3022.7553.4272.0123.709
SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.0007.8672.1542.5373.6702.1904.210
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.0006.9971.6311.5414.7832.8175.227
SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.0009.0532.0401.8135.6273.1695.189
SRHG-100C-485A-C118.00012.3323.1783.4785.6273.1695.189
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.00010.7192.6252.6596.5433.8337.076
SRHG-100C-535A-C218.00014.3553.8874.5046.5433.8337.076
SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.00013.1443.2353.3347.8514.6158.491
SRHG-100C-585A-C318.00017.1374.6205.3607.8514.6158.491
SRHG-100C-535A-C418.00011.3292.6102.4128.8815.36510.614
SRHG-100C-585A-C418.00015.3213.9954.4398.8815.36510.614
SRHG-130C-435A-C132.000





SRHG-130C-485A-C132.000





SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.000





SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm4,5 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0001.7367157192.3571.1361.498
SRHG-085S-335A-C29.0003.0571.4771.9992.3361.1231.475
SRHG-085S-385A-C29.0004.4632.2883.3622.3261.1161.464
SRHG-085S-435A-C29.0006.0643.2124.9142.3211.1131.459
SRHG-085S-335A-C39.0002.3398395533.7971.8112.356
SRHG-085S-385A-C39.0003.7451.6501.9163.7881.8052.345
SRHG-085S-435A-C39.0005.3462.5743.4683.7821.8012.340
SRHG-085S-335A-C59.000





SRHG-085S-385A-C59.0003.4681.4911.6484.1102.0102.698
SRHG-085S-435A-C59.0005.0702.4153.2004.1052.0072.692
SRHG-085S-385A-C69.000





SRHG-085S-435A-C69.0006.9382.5293.1815.0162.4353.238
SRHG-100S-385A-C118.000





SRHG-100S-435A-C118.0005.8342.3912.3796.3362.7793.252
SRHG-100S-485A-C118.0007.9483.6104.4276.3112.7623.225
SRHG-100S-535A-C118.00010.2914.9626.6986.3152.7643.228
SRHG-100S-585A-C118.00012.8646.4469.1926.3152.7643.228
SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0004.7941.7911.3717.4633.5084.483
SRHG-100S-485A-C218.0006.9083.0103.4197.4383.4924.456
SRHG-100S-535A-C218.0009.2514.3625.6907.4413.4954.460
SRHG-100S-585A-C218.00011.8245.8468.1847.4543.5034.474
SRHG-100S-535A-C318.0008.4713.7174.2799.1394.3865.400
SRHG-100S-585A-C318.00011.0445.2016.7739.1394.3865.400
SRHG-100S-535A-C418.0007.3013.0423.14510.3635.1516.750
SRHG-100S-585A-C418.0009.8744.5265.63910.3635.1516.750
SRHG-130S-435A-C132.000





SRHG-130S-485A-C132.000





SRHG-130S-535A-C132.000





SRHG-130S-585A-C132.000





SRHG-130S-635A-C132.000





SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.000





SRHG-130S-535A-C232.000





SRHG-130S-585A-C232.000





SRHG-130S-635A-C232.000





SRHG-130S-685A-C232.000





SRHG-130S-485A-C532.000





SRHG-130S-535A-C532.000





SRHG-130S-585A-C532.000





SRHG-130S-635A-C532.000





SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.000





SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000








Model NumberMax torque Nm5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0003.0937067222.0261.2242.378
SRHG-085C-335A-C29.0005.4921.6762.0512.0081.2112.340
SRHG-085C-385A-C29.0008.0672.6893.4772.0001.2052.324
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.0006.6681.8052.0443.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.0006.1081.5771.7333.5302.1544.281
SRHG-085C-435A-C59.0009.0492.7543.3633.5262.1514.272
SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.0008.1832.1942.4694.3102.6175.137
SRHG-100C-385A-C118.0007.3041.4339255.6273.1695.189
SRHG-100C-435A-C118.00010.6922.4722.5455.4743.1105.160
SRHG-100C-485A-C118.00014.6134.3754.7075.4633.1515.122
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.0008.9382.0071.7556.5433.8337.076
SRHG-100C-485A-C218.00012.6363.2833.6226.4033.8017.070
SRHG-100C-535A-C218.00016.6224.6745.6556.5433.8337.076
SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.00015.4124.0224.4857.8514.6158.491
SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.00013.5963.3973.5638.8815.36510.614
SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00010.6242.2652.2638.1485.02410.216
SRHG-130C-485A-C132.00015.7504.4095.1028.1205.00410.159
SRHG-130C-535A-C132.00021.4966.6918.2868.1245.00710.167
SRHG-130C-585A-C132.00027.8259.18011.7928.1385.01710.196
SRHG-130C-635A-C132.00034.74011.89215.6228.1655.03710.251
SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00014.2442.8942.88710.0646.05911.664
SRHG-130C-535A-C232.00019.9915.3816.07010.0686.06211.672
SRHG-130C-585A-C232.00026.3207.9089.57610.0826.07311.701
SRHG-130C-635A-C232.00033.23410.63713.40710.1096.09211.756
SRHG-130C-485A-C532.000





SRHG-130C-535A-C532.00017.5564.6525.19710.8346.76114.105
SRHG-130C-585A-C532.00023.8857.1838.70310.8496.77214.134
SRHG-130C-635A-C532.00030.8009.91112.53410.8756.79214.189
SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.00020.8654.4664.46314.5708.81317.153
SRHG-130C-635A-C632.00027.7807.4008.29314.5968.83317.207
SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm5 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0001.9708459612.3571.1361.498
SRHG-085S-335A-C29.0003.4981.8202.6312.3361.1231.475
SRHG-085S-385A-C29.0005.1372.8464.4232.3261.1161.464
SRHG-085S-435A-C29.0007.0104.0146.4712.3211.1131.459
SRHG-085S-335A-C39.0002.8261.1201.0253.7971.8112.356
SRHG-085S-385A-C39.0004.2462.0332.6583.7881.8052.345
SRHG-085S-435A-C39.0006.1203.2164.7053.7821.8012.340
SRHG-085S-335A-C59.0002.2504964764.1202.0162.708
SRHG-085S-385A-C59.0003.8901.8052.2684.1102.0102.698
SRHG-085S-435A-C59.0005.7632.9924.3164.1052.0072.692
SRHG-085S-385A-C69.0003.3381.1781.1675.0212.4383.243
SRHG-085S-435A-C69.0005.2112.4793.2155.0162.4353.238
SRHG-100S-385A-C118.0004.5809889466.3422.7833.259
SRHG-100S-435A-C118.0006.8092.9443.3826.3362.7793.252
SRHG-100S-485A-C118.0009.2924.5446.0966.3112.7623.225
SRHG-100S-535A-C118.00012.0766.3019.1396.3152.7643.228
SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0005.5642.0352.0217.4633.5084.483
SRHG-100S-485A-C218.0008.0473.7484.7357.4383.4924.456
SRHG-100S-535A-C218.00010.8315.5177.7787.4413.4954.460
SRHG-100S-585A-C218.00013.8967.44311.1297.4543.5034.474
SRHG-100S-535A-C318.0009.9324.5605.6959.1394.3865.400
SRHG-100S-585A-C318.00012.7916.2098.4669.1394.3865.400
SRHG-100S-535A-C418.0008.7623.8854.56110.3635.1516.750
SRHG-100S-585A-C418.00011.6215.5347.33210.3635.1516.750
SRHG-130S-435A-C132.0006.7662.7993.0419.4954.7126.439
SRHG-130S-485A-C132.00010.0304.9146.6099.4624.6916.403
SRHG-130S-535A-C132.00013.6907.22210.6109.4664.6946.407
SRHG-130S-585A-C132.00017.7219.74415.0169.4834.7056.426
SRHG-130S-635A-C132.00022.12512.49219.8299.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.000





SRHG-130S-485A-C232.0009.0713.6793.90011.7045.6127.351
SRHG-130S-535A-C232.00012.7316.0727.90111.7085.6157.356
SRHG-130S-585A-C232.00016.7628.62612.30711.7255.6267.374
SRHG-130S-635A-C232.00021.16611.38917.12011.7575.6467.409
SRHG-130S-685A-C232.00025.87714.33422.27111.7385.6347.388
SRHG-130S-485A-C532.0007.5212.7932.77712.6336.3748.884
SRHG-130S-535A-C532.00011.1805.2776.77812.6386.3778.889
SRHG-130S-585A-C532.00015.2117.83211.18412.6556.3888.908
SRHG-130S-635A-C532.00019.61510.59515.99712.6866.4088.942
SRHG-130S-685A-C532.00024.32713.53921.14712.6686.3968.922
SRHG-130S-735A-C532.00029.39516.70026.68812.6476.3838.899
SRHG-130S-535A-C632.000





SRHG-130S-585A-C632.00013.2885.5055.99416.9508.18410.810
SRHG-130S-635A-C632.00017.6918.37910.80816.9828.20410.845
SRHG-130S-685A-C632.00022.40311.37015.95816.9638.19210.824
SRHG-130S-735A-C632.00027.47214.55721.49816.9438.17910.802



Model NumberMax torque Nm5,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0003.6579421.0342.0261.2242.378
SRHG-085C-335A-C29.0006.2991.9952.4982.0081.2112.340
SRHG-085C-385A-C29.0009.1333.1074.0672.0001.2052.324
SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0004.9011.0641.0653.2661.9593.738
SRHG-085C-385A-C39.0007.7342.2322.6343.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.0007.1752.0082.3243.5302.1544.281
SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.0006.3091.4121.4304.3152.6205.146
SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.0008.4781.8411.5215.6273.1695.189
SRHG-100C-435A-C118.00012.3123.1513.4435.4743.1105.160
SRHG-100C-485A-C118.00016.0594.4725.3705.6273.1695.189
SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.00010.3572.3262.3606.4243.8177.114
SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.00015.8634.1834.7148.8815.36510.614
SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00012.7543.1943.4438.1485.02410.216
SRHG-130C-485A-C132.00018.3975.4656.5698.1205.00410.159
SRHG-130C-535A-C132.00024.7187.95910.0708.1245.00710.167
SRHG-130C-585A-C132.00031.67710.69113.9258.1385.01710.196
SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00016.8914.1094.35410.0646.05911.664
SRHG-130C-535A-C232.00023.2126.6737.85510.0686.06211.672
SRHG-130C-585A-C232.00030.1719.43111.71010.0826.07311.701
SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00014.4573.3673.48010.8306.75814.097
SRHG-130C-535A-C532.00020.7775.9486.98210.8346.76114.105
SRHG-130C-585A-C532.00027.7378.70510.83710.8496.77214.134
SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.00024.7176.1456.59614.5708.81317.153
SRHG-130C-635A-C632.00032.3189.22410.80714.5968.83317.207
SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm5,5 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0002.3291.0791.3542.3571.1361.498
SRHG-085S-335A-C29.0004.0122.1423.1932.3361.1231.475
SRHG-085S-385A-C29.0005.8163.2705.1662.3261.1161.464
SRHG-085S-435A-C29.0007.8774.5547.4182.3211.1131.459
SRHG-085S-335A-C39.0003.1211.3011.4283.7971.8112.356
SRHG-085S-385A-C39.0004.9252.4643.4003.7881.8052.345
SRHG-085S-435A-C39.0006.9863.7605.6533.7821.8012.340
SRHG-085S-335A-C59.0002.7641.0431.0384.1202.0162.708
SRHG-085S-385A-C59.0004.5692.2383.0104.1102.0102.698
SRHG-085S-435A-C59.0006.6303.5365.2634.1052.0072.692
SRHG-085S-385A-C69.0004.0171.7031.9105.0212.4383.243
SRHG-085S-435A-C69.0006.0783.0304.1625.0162.4353.238
SRHG-100S-385A-C118.0005.3881.8481.8296.3422.7833.259
SRHG-100S-435A-C118.0007.8413.6164.5106.3362.7793.252
SRHG-100S-485A-C118.00010.5745.3557.4986.3112.7623.225
SRHG-100S-535A-C118.00013.6367.28010.8446.3152.7643.228
SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.000





SRHG-100S-435A-C218.0006.5962.8023.1497.4633.5084.483
SRHG-100S-485A-C218.0009.3294.5676.1377.4383.4924.456
SRHG-100S-535A-C218.00012.3916.4999.4847.4413.4954.460
SRHG-100S-585A-C218.00015.3187.86211.5717.4413.4954.460
SRHG-100S-535A-C318.00011.3935.4037.1119.1394.3865.400
SRHG-100S-585A-C318.00014.5387.21710.1599.1394.3865.400
SRHG-100S-535A-C418.00010.2234.7285.97710.3635.1516.750
SRHG-100S-585A-C418.00013.3686.5429.02510.3635.1516.750
SRHG-130S-435A-C132.0008.1223.6934.5249.4954.7126.439
SRHG-130S-485A-C132.00011.7165.9818.4529.4624.6916.403
SRHG-130S-535A-C132.00015.7428.50712.8529.4664.6946.407
SRHG-130S-585A-C132.00020.17411.27517.6979.4834.7056.426
SRHG-130S-635A-C132.00025.01514.29322.9889.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.0007.1631.8671.81511.7375.6347.387
SRHG-130S-485A-C232.00010.7574.8005.74311.7045.6127.351
SRHG-130S-535A-C232.00014.7837.37610.14311.7085.6157.356
SRHG-130S-585A-C232.00019.21510.16614.98811.7255.6267.374
SRHG-130S-635A-C232.00024.05613.19620.28011.7575.6467.409
SRHG-130S-685A-C232.00029.24116.43225.94711.7385.6347.388
SRHG-130S-485A-C532.0009.2073.9984.62012.6336.3748.884
SRHG-130S-535A-C532.00013.2326.5839.02012.6386.3778.889
SRHG-130S-585A-C532.00017.6649.37313.86512.6556.3888.908
SRHG-130S-635A-C532.00022.50512.40219.15612.6866.4088.942
SRHG-130S-685A-C532.00027.69015.63724.82412.6686.3968.922
SRHG-130S-735A-C532.00033.26819.11130.92012.6476.3838.899
SRHG-130S-535A-C632.00011.3083.8713.83116.9338.17310.792
SRHG-130S-585A-C632.00015.7417.1238.67616.9508.18410.810
SRHG-130S-635A-C632.00020.58210.21913.96716.9828.20410.845
SRHG-130S-685A-C632.00025.76613.48719.63416.9638.19210.824
SRHG-130S-735A-C632.00031.34416.98225.73116.9438.17910.802

Model NumberMax torque Nm6 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0004.2211.1711.3472.0261.2242.378
SRHG-085C-335A-C29.0007.1072.3122.9452.0081.2112.340
SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0005.7081.4121.5123.2661.9593.738
SRHG-085C-385A-C39.0008.8012.6563.2253.2581.9533.722
SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.0005.1481.1751.2023.5382.1604.298
SRHG-085C-385A-C59.0008.2412.4342.9153.5302.1544.281
SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.0007.3751.8642.0214.3152.6205.146
SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.0009.7302.0162.0125.4793.1145.171
SRHG-100C-435A-C118.00013.9323.8094.3405.4743.1105.160
SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.0008.0381.6951.2986.5433.8337.076
SRHG-100C-435A-C218.00011.9773.0133.2576.4243.8177.114
SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00014.8844.0614.6238.1485.02410.216
SRHG-130C-485A-C132.00021.0446.5128.0358.1205.00410.159
SRHG-130C-535A-C132.00027.9399.22511.8548.1245.00710.167
SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.000





SRHG-130C-485A-C232.00019.5395.1985.82010.0646.05911.664
SRHG-130C-535A-C232.00026.4337.9539.63910.0686.06211.672
SRHG-130C-585A-C232.00034.02310.94713.84310.0826.07311.701
SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00017.1044.4694.94710.8306.75814.097
SRHG-130C-535A-C532.00023.9997.2288.76610.8346.76114.105
SRHG-130C-585A-C532.00031.58810.22112.97010.8496.77214.134
SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.00020.9794.5284.52614.5568.80317.123
SRHG-130C-585A-C632.00028.5687.7198.73014.5708.81317.153
SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm6 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0002.6881.3081.7462.3571.1361.498
SRHG-085S-335A-C29.0004.5262.4643.7552.3361.1231.475
SRHG-085S-385A-C29.0006.4953.6935.9082.3261.1161.464
SRHG-085S-435A-C29.0008.7445.0938.3662.3211.1131.459
SRHG-085S-335A-C39.0003.6351.6401.9903.7971.8112.356
SRHG-085S-385A-C39.0005.6052.8934.1423.7881.8052.345
SRHG-085S-435A-C39.0007.8534.3026.6003.7821.8012.340
SRHG-085S-335A-C59.0003.2781.4061.6004.1202.0162.708
SRHG-085S-385A-C59.0005.2482.6683.7534.1102.0102.698
SRHG-085S-435A-C59.0007.4974.0796.2114.1052.0072.692
SRHG-085S-385A-C69.0004.6962.1482.6525.0212.4383.243
SRHG-085S-435A-C69.0006.9453.5775.1105.0162.4353.238
SRHG-100S-385A-C118.0006.1962.5332.7136.3422.7833.259
SRHG-100S-435A-C118.0008.8724.2775.6386.3362.7793.252
SRHG-100S-485A-C118.00011.8576.1638.8996.3112.7623.225
SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0004.9511.3831.3527.4693.5124.490
SRHG-100S-435A-C218.0007.6273.4784.2777.4633.5084.483
SRHG-100S-485A-C218.00010.6125.3797.5397.4383.4924.456
SRHG-100S-535A-C218.00013.9517.47711.1897.4413.4954.460
SRHG-100S-585A-C218.00017.0658.87013.2647.4413.4954.460
SRHG-100S-535A-C318.00012.8546.2468.5289.1394.3865.400
SRHG-100S-585A-C318.00016.2858.22511.8539.1394.3865.400
SRHG-100S-535A-C418.00011.6845.5717.39410.3635.1516.750
SRHG-100S-585A-C418.00015.1157.55010.71910.3635.1516.750
SRHG-130S-435A-C132.0009.4784.5636.0069.4954.7126.439
SRHG-130S-485A-C132.00013.4027.04110.2959.4624.6916.403
SRHG-130S-535A-C132.00017.7939.79015.0959.4664.6946.407
SRHG-130S-585A-C132.00022.62712.80520.3789.4834.7056.426
SRHG-130S-635A-C132.00027.90516.09326.1489.5154.7256.460
SRHG-130S-385A-C232.000





SRHG-130S-435A-C232.0008.5203.2923.29711.7375.6347.387
SRHG-130S-485A-C232.00012.4435.8887.58611.7045.6127.351
SRHG-130S-535A-C232.00016.8348.67112.38611.7085.6157.356
SRHG-130S-585A-C232.00021.66811.70317.66911.7255.6267.374
SRHG-130S-635A-C232.00026.94615.00123.43911.7575.6467.409
SRHG-130S-685A-C232.00032.60418.52929.62311.7385.6347.388
SRHG-130S-485A-C532.00010.8935.0936.46312.6336.3748.884
SRHG-130S-535A-C532.00015.2847.87811.26312.6386.3778.889
SRHG-130S-585A-C532.00020.11710.90916.54612.6556.3888.908
SRHG-130S-635A-C532.00025.39514.20522.31512.6866.4088.942
SRHG-130S-685A-C532.00031.05317.73228.50012.6686.3968.922
SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00013.3605.5546.07316.9338.17310.792
SRHG-130S-585A-C632.00018.1948.70111.35716.9508.18410.810
SRHG-130S-635A-C632.00023.47212.04417.12616.9828.20410.845
SRHG-130S-685A-C632.00029.13015.59623.31116.9638.19210.824
SRHG-130S-735A-C632.000








Model NumberMax torque Nm7 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0005.3491.6201.9712.0261.2242.378
SRHG-085C-335A-C29.0008.7212.9463.8392.0081.2112.340
SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.0007.3232.0682.4063.2661.9593.738
SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.0006.7631.8432.0963.5382.1604.298
SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.00012.2683.1323.4185.4793.1145.171
SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.00010.3132.3062.3356.4293.8217.125
SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00019.1435.7606.9828.1485.02410.216
SRHG-130C-485A-C132.00026.3398.59710.9688.1205.00410.159
SRHG-130C-535A-C132.00034.38111.75115.4238.1245.00710.167
SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.000





SRHG-130C-435A-C232.00017.6374.4204.76710.0926.08011.721
SRHG-130C-485A-C232.00024.8337.3188.75310.0646.05911.664
SRHG-130C-535A-C232.00032.87610.49613.20810.0686.06211.672
SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00022.3996.5937.88010.8306.75814.097
SRHG-130C-535A-C532.00030.4419.77012.33510.8346.76114.105
SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.00027.4217.2548.09514.5568.80317.123
SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm7 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0003.4061.7622.5312.3571.1361.498
SRHG-085S-335A-C29.0005.5543.1064.8792.3361.1231.475
SRHG-085S-385A-C29.0007.8544.5397.3922.3261.1161.464
SRHG-085S-435A-C29.000





SRHG-085S-335A-C39.0004.6632.2983.1143.7971.8112.356
SRHG-085S-385A-C39.0006.9633.7455.6273.7881.8052.345
SRHG-085S-435A-C39.0009.5875.3848.4963.7821.8012.340
SRHG-085S-335A-C59.0004.3072.0722.7244.1202.0162.708
SRHG-085S-385A-C59.0006.6063.5215.2374.1102.0102.698
SRHG-085S-435A-C59.0009.2305.1628.1064.1052.0072.692
SRHG-085S-385A-C69.0006.0553.0154.1365.0212.4383.243
SRHG-085S-435A-C69.0008.6794.6657.0055.0162.4353.238
SRHG-100S-385A-C118.0007.8133.5984.4796.3422.7833.259
SRHG-100S-435A-C118.00010.9365.5837.8936.3362.7793.252
SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0006.5672.7833.1187.4693.5124.490
SRHG-100S-435A-C218.0009.6904.7966.5327.4633.5084.483
SRHG-100S-485A-C218.00013.1766.99110.3427.4383.4924.456
SRHG-100S-535A-C218.00016.5578.57712.7717.4383.4924.456
SRHG-100S-585A-C218.000





SRHG-100S-535A-C318.00015.7777.93211.3609.1394.3865.400
SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.00014.6077.25710.22610.3635.1516.750
SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.00012.1916.2808.9719.4954.7126.439
SRHG-130S-485A-C132.00016.7749.15313.9819.4624.6916.403
SRHG-130S-535A-C132.00021.89612.35019.5809.4664.6946.407
SRHG-130S-585A-C132.00027.53315.86125.7409.4834.7056.426
SRHG-130S-635A-C132.00033.68519.69132.4669.5154.7256.460
SRHG-130S-385A-C232.0007.1261.8271.77411.7455.6397.396
SRHG-130S-435A-C232.00011.2325.1096.26211.7375.6347.387
SRHG-130S-485A-C232.00015.8158.02811.27211.7045.6127.351
SRHG-130S-535A-C232.00020.93711.24616.87111.7085.6157.356
SRHG-130S-585A-C232.00026.57414.76823.03211.7255.6267.374
SRHG-130S-635A-C232.00032.72618.60529.75711.7575.6467.409
SRHG-130S-685A-C232.00039.33022.71836.97511.7385.6347.388
SRHG-130S-485A-C532.00014.2657.23510.14912.6336.3748.884
SRHG-130S-535A-C532.00019.38710.45215.74812.6386.3778.889
SRHG-130S-585A-C532.00025.02313.97321.90812.6556.3888.908
SRHG-130S-635A-C532.00031.17617.80828.63412.6866.4088.942
SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00017.4638.23310.55816.9338.17310.792
SRHG-130S-585A-C632.00023.09911.80916.71916.9508.18410.810
SRHG-130S-635A-C632.00029.25215.67323.44416.9828.20410.845
SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000








Model NumberMax torque Nm8,5 BAR CANTED - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-C29.0007.0412.2872.9092.0261.2242.378
SRHG-085C-335A-C29.000





SRHG-085C-385A-C29.000





SRHG-085C-435A-C29.000





SRHG-085C-335A-C39.000





SRHG-085C-385A-C39.000





SRHG-085C-435A-C39.000





SRHG-085C-335A-C59.000





SRHG-085C-385A-C59.000





SRHG-085C-435A-C59.000





SRHG-085C-385A-C69.000





SRHG-085C-435A-C69.000





SRHG-100C-385A-C118.000





SRHG-100C-435A-C118.000





SRHG-100C-485A-C118.000





SRHG-100C-385A-C218.000





SRHG-100C-435A-C218.000





SRHG-100C-485A-C218.000





SRHG-100C-535A-C218.000





SRHG-100C-585A-C218.000





SRHG-100C-535A-C318.000





SRHG-100C-585A-C318.000





SRHG-100C-535A-C418.000





SRHG-100C-585A-C418.000





SRHG-130C-435A-C132.00025.5318.28010.5218.1485.02410.216
SRHG-130C-485A-C132.00034.28111.71215.3678.1205.00410.159
SRHG-130C-535A-C132.000





SRHG-130C-585A-C132.000





SRHG-130C-635A-C132.000





SRHG-130C-385A-C232.00016.1953.8153.96810.0996.08511.735
SRHG-130C-435A-C232.00024.0266.9978.30610.0926.08011.721
SRHG-130C-485A-C232.00032.77510.45613.15210.0646.05911.664
SRHG-130C-535A-C232.000





SRHG-130C-585A-C232.000





SRHG-130C-635A-C232.000





SRHG-130C-485A-C532.00030.3409.73012.27910.8306.75814.097
SRHG-130C-535A-C532.000





SRHG-130C-585A-C532.000





SRHG-130C-635A-C532.000





SRHG-130C-685A-C532.000





SRHG-130C-735A-C532.000





SRHG-130C-535A-C632.000





SRHG-130C-585A-C632.000





SRHG-130C-635A-C632.000





SRHG-130C-685A-C632.000





SRHG-130C-735A-C632.000






Model NumberMax torque Nm8,5 BAR SIMMETRICAL - Normally closed Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-C29.0004.4842.4383.7092.3571.1361.498
SRHG-085S-335A-C29.0007.0964.0676.5652.3361.1231.475
SRHG-085S-385A-C29.0009.8915.8079.6192.3261.1161.464
SRHG-085S-435A-C29.000





SRHG-085S-335A-C39.0006.2063.2704.7993.7971.8112.356
SRHG-085S-385A-C39.0009.0005.0187.8543.7881.8052.345
SRHG-085S-435A-C39.000





SRHG-085S-335A-C59.0005.8493.0464.4104.1202.0162.708
SRHG-085S-385A-C59.0008.6434.7957.4644.1102.0102.698
SRHG-085S-435A-C59.000





SRHG-085S-385A-C69.0008.0924.2976.3635.0212.4383.243
SRHG-085S-435A-C69.000





SRHG-100S-385A-C118.00010.2375.1427.1296.3422.7833.259
SRHG-100S-435A-C118.000





SRHG-100S-485A-C118.000





SRHG-100S-535A-C118.000





SRHG-100S-585A-C118.000





SRHG-100S-385A-C218.0008.9924.3535.7687.4693.5124.490
SRHG-100S-435A-C218.00012.7856.7469.9157.4633.5084.483
SRHG-100S-485A-C218.00016.5148.55312.7307.4633.5084.483
SRHG-100S-535A-C218.000





SRHG-100S-585A-C218.000





SRHG-100S-535A-C318.000





SRHG-100S-585A-C318.000





SRHG-100S-535A-C418.000





SRHG-100S-585A-C418.000





SRHG-130S-435A-C132.00016.2608.83113.4199.4954.7126.439
SRHG-130S-485A-C132.00021.83212.31019.5099.4624.6916.403
SRHG-130S-535A-C132.00028.05116.18426.3079.4664.6946.407
SRHG-130S-585A-C132.00034.89120.44133.7849.4834.7056.426
SRHG-130S-635A-C132.000





SRHG-130S-385A-C232.00010.3134.5105.25811.7455.6397.396
SRHG-130S-435A-C232.00015.3017.70410.71011.7375.6347.387
SRHG-130S-485A-C232.00020.87311.20616.80111.7045.6127.351
SRHG-130S-535A-C232.00027.09215.09223.59811.7085.6157.356
SRHG-130S-585A-C232.00033.93219.35631.07511.7255.6267.374
SRHG-130S-635A-C232.000





SRHG-130S-685A-C232.00049.42028.99748.00411.7385.6347.388
SRHG-130S-485A-C532.00019.32310.41215.67712.6336.3748.884
SRHG-130S-535A-C532.00025.54114.29622.47512.6386.3778.889
SRHG-130S-585A-C532.00032.38218.55929.95212.6556.3888.908
SRHG-130S-635A-C532.000





SRHG-130S-685A-C532.000





SRHG-130S-735A-C532.000





SRHG-130S-535A-C632.00023.61812.13617.28616.9338.17310.792
SRHG-130S-585A-C632.00030.45816.42924.76316.9508.18410.810
SRHG-130S-635A-C632.000





SRHG-130S-685A-C632.000





SRHG-130S-735A-C632.000






Semplice Effetto Normalmente Aperto – Tabella coppie (momenti torcenti)

Model NumberMax torque Nm3 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1371.255530509
SRHG-085C-385A-O29.0003.8361.0151.1292.1071.2072.158
SRHG-085C-435A-O29.0003.8281.0121.1253.0831.9034.046
SRHG-085C-385A-O39.000





SRHG-085C-435A-O39.0006.2431.6331.8052.3071.1251.271
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.0006.7651.8392.0781.997715672
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.0008.2362.2112.4812.5991.0781.034
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.00012.2893.1503.4413.9931.2881.191
SRHG-100C-585A-O218.00012.3103.1583.4525.5972.9604.294
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.000





SRHG-130C-535A-O132.00015.5884.3254.9464.7692.2402.220
SRHG-130C-585A-O132.00015.6154.3364.9606.8793.8176.301
SRHG-130C-635A-O132.00015.6674.3564.9879.1885.48010.767
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.00019.3435.1175.6906.0472.1502.019
SRHG-130C-635A-O232.00019.3945.1375.7178.3564.4336.485
SRHG-130C-685A-O232.00019.3635.1255.70110.8086.21811.229
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.00020.8655.9446.9017.0063.5994.795
SRHG-130C-685A-O532.00020.8355.9326.8859.4595.3949.538
SRHG-130C-735A-O532.00020.8025.9196.86812.0977.28514.641
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.00027.9407.4578.33510.4255.2236.442

Model NumberMax torque Nm3 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4741.442394384
SRHG-085S-385A-O29.0002.3251.1161.4632.4221.1391.456
SRHG-085S-435A-O29.0002.3201.1131.4583.5441.8492.682
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.000





SRHG-085S-435A-O39.0003.7821.8012.3392.653924916
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.000





SRHG-085S-435A-O59.0004.1042.0072.6922.296545526
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.0006.3152.7643.2285.8342.2812.317
SRHG-100S-585A-O118.0006.3272.7733.2427.6793.5114.333
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.0007.4413.4954.4604.589998956
SRHG-100S-585A-O218.0007.4543.5034.4746.4342.6942.972
SRHG-100S-535A-O318.000





SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.000





SRHG-130S-535A-O132.0009.4664.6946.4085.4841.6681.640
SRHG-130S-585A-O132.0009.4834.7056.4267.9093.5544.291
SRHG-130S-635A-O132.0009.5154.7256.46110.5645.2537.193
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.00011.7255.6267.3746.9501.6401.582
SRHG-130S-635A-O232.00011.7575.6467.4099.6054.0404.484
SRHG-130S-685A-O232.00011.7385.6347.38812.4255.8767.566
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.000





SRHG-130S-635A-O532.00012.6866.4088.9428.0553.2223.361
SRHG-130S-685A-O532.00012.6686.3968.92210.8745.0816.443
SRHG-130S-735A-O532.00012.6476.3838.89913.9077.0109.758
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.00016.9428.17910.80111.9844.5894.569



Model NumberMax torque Nm3,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1371.7029121.374
SRHG-085C-385A-O29.0003.8361.0151.1292.6981.6303.301
SRHG-085C-435A-O29.0003.8281.0121.1253.8372.4365.504
SRHG-085C-385A-O39.0006.2511.6371.8101.922577527
SRHG-085C-435A-O39.0006.2431.6331.8053.0611.6862.730
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.0006.7651.8392.0782.7511.4582.130
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.0008.2362.2112.4813.5361.8942.847
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.00010.4602.4102.4884.7372.3152.631
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.00012.2893.1503.4415.3502.7773.816
SRHG-100C-585A-O218.00012.3103.1583.4527.2204.1427.433
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.00015.5814.3234.9424.3241.4591.359
SRHG-130C-535A-O132.00015.5884.3254.9466.5543.5805.672
SRHG-130C-585A-O132.00015.6154.3364.9609.0125.35510.427
SRHG-130C-635A-O132.00015.6674.3564.98711.7027.26415.630
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.00019.3155.1065.6765.7211.5531.390
SRHG-130C-585A-O232.00019.3435.1175.6908.1804.3036.146
SRHG-130C-635A-O232.00019.3945.1375.71710.8696.26211.348
SRHG-130C-685A-O232.00019.3635.1255.70113.7338.31116.887
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.00020.8145.9246.8756.8313.4674.455
SRHG-130C-635A-O532.00020.8655.9446.9019.5205.4399.657
SRHG-130C-685A-O532.00020.8355.9326.88512.3847.48915.197
SRHG-130C-735A-O532.00020.8025.9196.86815.4649.67221.156
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.00027.9737.4708.35310.7125.4406.997
SRHG-130C-735A-O632.00027.9407.4578.33513.7937.70812.956

Model NumberMax torque Nm3,5 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4741.956836946
SRHG-085S-385A-O29.0002.3251.1161.4633.1011.5702.198
SRHG-085S-435A-O29.0002.3201.1131.4584.4112.3923.629
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.000





SRHG-085S-435A-O39.0003.7821.8012.3393.5191.5651.863
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.000





SRHG-085S-435A-O59.0004.1042.0072.6923.1631.3291.474
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.0006.3112.7623.2255.4451.9081.891
SRHG-100S-535A-O118.0006.3152.7643.2287.3943.3274.022
SRHG-100S-585A-O118.0006.3272.7733.2429.5444.7046.372
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.0007.4413.4954.4606.1492.5012.661
SRHG-100S-585A-O218.0007.4543.5034.4748.2993.9115.011
SRHG-100S-535A-O318.0008.7364.3865.4005.3782.0311.492
SRHG-100S-585A-O318.0008.7364.3865.4007.3173.1863.494
SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.0009.9065.1516.7506.1832.5112.324
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.0009.4624.6926.4034.9721.1241.080
SRHG-130S-535A-O132.0009.4664.6946.4087.5353.3103.882
SRHG-130S-585A-O132.0009.4834.7056.42610.3625.1256.972
SRHG-130S-635A-O132.0009.5154.7256.46113.4547.07410.352
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.00011.7255.6267.3749.4033.9054.263
SRHG-130S-635A-O232.00011.7575.6467.40912.4955.9227.643
SRHG-130S-685A-O232.00011.7385.6347.38815.7888.01111.242
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.00012.6556.3888.9087.8533.0813.140
SRHG-130S-635A-O532.00012.6866.4088.94210.9455.1266.520
SRHG-130S-685A-O532.00012.6686.3968.92214.2377.21810.119
SRHG-130S-735A-O532.00012.6476.3838.89917.7799.44513.990
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.00016.9628.19210.82312.3144.8344.930
SRHG-130S-735A-O632.00016.9428.17910.80115.8567.1988.802



Model NumberMax torque Nm4 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8521.0211.1372.1491.2372.239
SRHG-085C-385A-O29.0003.8361.0151.1293.2882.0484.443
SRHG-085C-435A-O29.0003.8281.0121.1254.5912.9686.962
SRHG-085C-385A-O39.0006.2511.6371.8102.5131.2811.669
SRHG-085C-435A-O39.0006.2431.6331.8053.8152.2314.188
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7731.8422.0822.2021.0441.069
SRHG-085C-435A-O59.0006.7651.8392.0783.5052.0083.589
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2702.2252.4983.0251.5141.859
SRHG-085C-485A-O69.0008.2362.2112.4814.4732.5754.660
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5012.4272.5094.1291.5391.455
SRHG-100C-485A-O118.00010.4602.4102.4885.8533.1484.788
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.2843.1483.4384.7702.3402.693
SRHG-100C-535A-O218.00012.2893.1503.4416.7073.7726.441
SRHG-100C-585A-O218.00012.3103.1583.4528.8435.30610.572
SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.00016.3174.9285.2867.1543.8596.317
SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.00015.5814.3234.9425.7913.0184.196
SRHG-130C-535A-O132.00015.5884.3254.9468.3384.8719.123
SRHG-130C-585A-O132.00015.6154.3364.96011.1466.87014.554
SRHG-130C-635A-O132.00015.6674.3564.98714.2169.04120.492
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.00019.3155.1065.6767.5063.8004.842
SRHG-130C-585A-O232.00019.3435.1175.69010.3145.86110.273
SRHG-130C-635A-O232.00019.3945.1375.71713.3838.06216.210
SRHG-130C-685A-O232.00019.3635.1255.70116.65910.38422.546
SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.00020.7875.9136.8606.1562.9533.151
SRHG-130C-585A-O532.00020.8145.9246.8758.9645.0368.582
SRHG-130C-635A-O532.00020.8655.9446.90112.0347.24014.520
SRHG-130C-685A-O532.00020.8355.9326.88515.3099.56220.855
SRHG-130C-735A-O532.00020.8025.9196.86818.83212.05127.671
SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.00028.0037.4828.36910.3625.1766.320
SRHG-130C-685A-O632.00027.9737.4708.35313.6377.59512.656
SRHG-130C-735A-O632.00027.9407.4578.33517.16110.13519.471

Model NumberMax torque Nm4 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.000





SRHG-085S-335A-O29.0002.3351.1221.4742.4701.1701.508
SRHG-085S-385A-O29.0002.3251.1161.4633.7801.9972.940
SRHG-085S-435A-O29.0002.3201.1131.4585.2782.9344.577
SRHG-085S-335A-O39.000





SRHG-085S-385A-O39.0003.7871.8042.3452.8891.1421.174
SRHG-085S-435A-O39.0003.7821.8012.3394.3862.1222.811
SRHG-085S-335A-O59.000





SRHG-085S-385A-O59.0004.1102.0102.6972.532796784
SRHG-085S-435A-O59.0004.1042.0072.6924.0301.8952.421
SRHG-085S-385A-O69.000





SRHG-085S-435A-O69.0005.0152.4343.2373.4791.3271.321
SRHG-100S-385A-O118.000





SRHG-100S-435A-O118.0006.3362.7793.2524.7461.1651.127
SRHG-100S-485A-O118.0006.3112.7623.2256.7272.8893.293
SRHG-100S-535A-O118.0006.3152.7643.2288.9554.3295.728
SRHG-100S-585A-O118.0006.3272.7733.24211.4105.8828.411
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.000





SRHG-100S-485A-O218.0007.4383.4924.4565.4821.9481.932
SRHG-100S-535A-O218.0007.4413.4954.4607.7103.5314.367
SRHG-100S-585A-O218.0007.4543.5034.47410.1655.0977.050
SRHG-100S-535A-O318.0008.7364.3865.4006.7942.8742.954
SRHG-100S-585A-O318.0008.7364.3865.4009.0114.1935.241
SRHG-100S-535A-O418.0009.9065.1516.7505.6602.1991.784
SRHG-100S-585A-O418.0009.9065.1516.7507.8773.5184.071
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.0009.4624.6926.4036.6582.7252.923
SRHG-130S-535A-O132.0009.4664.6946.4089.5874.6326.125
SRHG-130S-585A-O132.0009.4834.7056.42612.8156.6729.653
SRHG-130S-635A-O132.0009.5154.7256.46116.3448.88413.511
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.00011.7085.6157.3568.6283.3703.416
SRHG-130S-585A-O232.00011.7255.6267.37411.8565.5126.945
SRHG-130S-635A-O232.00011.7575.6467.40915.3867.75810.802
SRHG-130S-685A-O232.00011.7385.6347.38819.15110.12714.918
SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.00012.6386.3778.8897.0772.3222.293
SRHG-130S-585A-O532.00012.6556.3888.90810.3054.7145.821
SRHG-130S-635A-O532.00012.6866.4088.94213.8356.9649.679
SRHG-130S-685A-O532.00012.6686.3968.92217.6009.33313.795
SRHG-130S-735A-O532.00012.6476.3838.89921.65111.86818.223
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.00016.9818.20410.84411.9124.5124.490
SRHG-130S-685A-O632.00016.9628.19210.82315.6777.0828.606
SRHG-130S-735A-O632.00016.9428.17910.80119.7289.67813.034

Model NumberMax torque Nm4,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.000





SRHG-085C-335A-O29.0003.8871.0351.1552.4791.5132890
SRHG-085C-385A-O29.0003.8521.0211.1373.6192.3244904
SRHG-085C-435A-O29.0003.8361.0151.1294.9173.2487197
SRHG-085C-385A-O39.0003.8281.0121.1253.0361.7172716
SRHG-085C-435A-O39.0006.2511.6371.8104.3352.6405010
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7891.8482.0902.8121.5582321
SRHG-085C-435A-O59.0006.7731.8422.0824.1112.4814614
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2782.2282.5033.6561.9842803
SRHG-085C-485A-O69.0008.2702.2252.4985.1133.0205376
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5112.4312.5145.1362.6463572
SRHG-100C-485A-O118.00010.5012.4272.5096.9973.9306852
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.3243.1643.4596.0813.2985238
SRHG-100C-535A-O218.00012.3243.1643.4598.1444.7228874
SRHG-100C-585A-O218.00012.3243.1643.45910.4096.28512866
SRHG-100C-535A-O318.00014.3904.1724.2287.4574.0686850
SRHG-100C-585A-O318.00014.3904.1724.2289.7225.63210843
SRHG-100C-535A-O418.00016.3174.9285.2866.4273.3575.035
SRHG-100C-585A-O418.00016.3174.9285.2868.6924.9219.027
SRHG-130C-435A-O132.000





SRHG-130C-485A-O132.000





SRHG-130C-535A-O132.000





SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.000





SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.000





SRHG-130C-535A-O532.000





SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.000





SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm4,5 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4971.682715741
SRHG-085S-335A-O29.0002.3351.1221.4742.9631.4772062
SRHG-085S-385A-O29.0002.3251.1161.4634.3262.2883468
SRHG-085S-435A-O29.0002.3201.1131.4585.8773.2125070
SRHG-085S-335A-O39.0003.7971.8102.3552.267839571
SRHG-085S-385A-O39.0003.7871.8042.3453.6291.6501977
SRHG-085S-435A-O39.0003.7821.8012.3395.1812.5743578
SRHG-085S-335A-O59.0004.1192.0162.7081.999680294
SRHG-085S-385A-O59.0004.1102.0102.6973.3621.4911700
SRHG-085S-435A-O59.0004.1042.0072.6924.9142.4153302
SRHG-085S-385A-O69.0005.0212.4383.2432.819973466
SRHG-085S-435A-O69.0005.0152.4343.2374.3711.8972067
SRHG-100S-385A-O118.0006.3422.7833.2593.8291.304570
SRHG-100S-435A-O118.0006.3362.7793.2525.6552.3912454
SRHG-100S-485A-O118.0006.3112.7623.2257.7033.6104568
SRHG-100S-535A-O118.0006.3152.7643.2289.9744.9626911
SRHG-100S-585A-O118.0006.3152.7643.22812.4686.4469484
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4834.6471.7911414
SRHG-100S-485A-O218.0007.4383.4924.4566.6953.0103528
SRHG-100S-535A-O218.0007.4413.4954.4608.9664.3625871
SRHG-100S-585A-O218.0007.4543.5034.47411.4605.8468444
SRHG-100S-535A-O318.0008.7364.3865.4008.2103.7174415
SRHG-100S-585A-O318.0008.7364.3865.40010.7045.2016988
SRHG-100S-535A-O418.0009.9065.1516.7507.0763.0423.245
SRHG-100S-585A-O418.0009.9065.1516.7509.5704.5265.818
SRHG-130S-435A-O132.000





SRHG-130S-485A-O132.000





SRHG-130S-535A-O132.000





SRHG-130S-585A-O132.000





SRHG-130S-635A-O132.000





SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.000





SRHG-130S-535A-O232.000





SRHG-130S-585A-O232.000





SRHG-130S-635A-O232.000





SRHG-130S-685A-O232.000





SRHG-130S-485A-O532.000





SRHG-130S-535A-O532.000





SRHG-130S-585A-O532.000





SRHG-130S-635A-O532.000





SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.000





SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000








Model NumberMax torque Nm5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1551.7149211.399
SRHG-085C-335A-O29.0003.8521.0211.1373.0431.8753.969
SRHG-085C-385A-O29.0003.8361.0151.1294.4692.8836.728
SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8103.6942.1443.954
SRHG-085C-435A-O39.0006.2431.6331.8055.3233.3047.105
SRHG-085C-335A-O59.000





SRHG-085C-385A-O59.0006.7731.8422.0823.3841.9203.354
SRHG-085C-435A-O59.0006.7651.8392.0785.0133.0846.505
SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.0008.2702.2252.4984.5332.6184.776
SRHG-085C-485A-O69.0008.2362.2112.4816.3483.9128.286
SRHG-100C-385A-O118.000





SRHG-100C-435A-O118.00010.5012.4272.5095.9243.2014.926
SRHG-100C-485A-O118.00010.4602.4102.4888.0834.7639.103
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.00012.2843.1483.4387.0003.9847.008
SRHG-100C-535A-O218.00012.2893.1503.4419.4225.71711.692
SRHG-100C-585A-O218.00012.3103.1583.45211.9477.34715.577
SRHG-100C-535A-O318.00014.3904.1724.2288.7444.9569.118
SRHG-100C-585A-O318.00014.3904.1724.22811.2606.69313.554
SRHG-100C-535A-O418.00016.3174.9285.2867.7144.2457.302
SRHG-100C-585A-O418.00016.3174.9285.28610.2305.98211.738
SRHG-130C-435A-O132.00015.6344.3434.9705.8843.0884.377
SRHG-130C-485A-O132.00015.5814.3234.9428.7245.1489.869
SRHG-130C-535A-O132.00015.5884.3254.94611.9077.40916.027
SRHG-130C-585A-O132.00015.6154.3364.96015.4139.88522.808
SRHG-130C-635A-O132.00015.6674.3564.98719.24312.58530.217
SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.000





SRHG-130C-485A-O232.00019.3085.1035.6727.8914.0895.587
SRHG-130C-535A-O232.00019.3155.1065.67611.0756.41011.745
SRHG-130C-585A-O232.00019.3435.1175.69014.5818.91218.526
SRHG-130C-635A-O232.00019.3945.1375.71718.41111.62325.936
SRHG-130C-685A-O232.00019.3635.1255.70122.50914.51533.863
SRHG-130C-485A-O532.00020.7805.9116.8576.5423.2493.897
SRHG-130C-535A-O532.00020.7875.9136.8609.7255.58610.054
SRHG-130C-585A-O532.00020.8145.9246.87513.2318.09116.836
SRHG-130C-635A-O532.00020.8655.9446.90117.06110.80124.245
SRHG-130C-685A-O532.00020.8355.9326.88521.16013.69232.172
SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.3288.0532.0911.854
SRHG-130C-585A-O632.00027.9527.4628.34211.5596.0728.636
SRHG-130C-635A-O632.00028.0037.4828.36915.3908.86216.045
SRHG-130C-685A-O632.00027.9737.4708.35319.48811.79423.972
SRHG-130C-735A-O632.00027.9407.4578.33523.89614.91932.500

Model NumberMax torque Nm5 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4971.971845962
SRHG-085S-335A-O29.0002.3351.1221.4743.4991.8202.632
SRHG-085S-385A-O29.0002.3251.1161.4635.1382.8474.425
SRHG-085S-435A-O29.0002.3201.1131.4587.0114.0146.472
SRHG-085S-335A-O39.0003.7971.8102.3552.607876866
SRHG-085S-385A-O39.0003.7871.8042.3454.2472.0332.659
SRHG-085S-435A-O39.0003.7821.8012.3396.1203.2174.706
SRHG-085S-335A-O59.0004.1192.0162.7082.251497477
SRHG-085S-385A-O59.0004.1102.0102.6973.8901.8052.269
SRHG-085S-435A-O59.0004.1042.0072.6925.7642.9934.316
SRHG-085S-385A-O69.0005.0212.4383.2433.3391.1781.168
SRHG-085S-435A-O69.0005.0152.4343.2375.2122.4793.216
SRHG-100S-385A-O118.0006.3422.7833.2594.580988946
SRHG-100S-435A-O118.0006.3362.7793.2526.8092.9443.382
SRHG-100S-485A-O118.0006.3112.7623.2259.2924.5446.096
SRHG-100S-535A-O118.0006.3152.7643.22812.0766.3019.139
SRHG-100S-585A-O118.0006.3152.7643.22814.1617.45411.231
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4835.5642.0352.021
SRHG-100S-485A-O218.0007.4383.4924.4568.0473.7484.735
SRHG-100S-535A-O218.0007.4413.4954.46010.8315.5177.778
SRHG-100S-585A-O218.0007.4543.5034.47413.8967.44311.129
SRHG-100S-535A-O318.0008.7364.3865.4009.6264.5605.876
SRHG-100S-585A-O318.0008.7364.3865.40012.3976.2098.735
SRHG-100S-535A-O418.0009.9065.1516.7508.4923.8854.706
SRHG-100S-585A-O418.0009.9065.1516.75011.2635.5347.565
SRHG-130S-435A-O132.0009.4954.7126.4396.7662.7983.041
SRHG-130S-485A-O132.0009.4624.6926.40310.0304.9146.609
SRHG-130S-535A-O132.0009.4664.6946.40813.6907.22210.610
SRHG-130S-585A-O132.0009.4834.7056.42617.7219.74415.015
SRHG-130S-635A-O132.0009.5154.7256.46122.12412.49219.829
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.000





SRHG-130S-485A-O232.00011.7045.6127.3519.0713.6793.901
SRHG-130S-535A-O232.00011.7085.6157.35612.7316.0737.901
SRHG-130S-585A-O232.00011.7255.6267.37416.7628.62612.307
SRHG-130S-635A-O232.00011.7575.6467.40921.16611.38917.121
SRHG-130S-685A-O232.00011.7385.6347.38825.87814.33422.271
SRHG-130S-485A-O532.00012.6336.3748.8847.5212.7942.777
SRHG-130S-535A-O532.00012.6386.3778.88911.1815.2776.778
SRHG-130S-585A-O532.00012.6556.3888.90815.2117.83211.184
SRHG-130S-635A-O532.00012.6866.4088.94219.61510.59515.997
SRHG-130S-685A-O532.00012.6686.3968.92224.32713.53921.147
SRHG-130S-735A-O532.00012.6476.3838.89929.39516.70026.688
SRHG-130S-535A-O632.000





SRHG-130S-585A-O632.00016.9508.18410.81013.2885.5065.995
SRHG-130S-635A-O632.00016.9818.20410.84417.6928.38010.809
SRHG-130S-685A-O632.00016.9628.19210.82322.40411.37015.959
SRHG-130S-735A-O632.00016.9428.17910.80127.47214.55721.499



Model NumberMax torque Nm5,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.0271.1492.003
SRHG-085C-335A-O29.0003.8521.0211.1373.4902.1914.834
SRHG-085C-385A-O29.0003.8361.0151.1295.0603.2997.870
SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8104.2842.5675.096
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0902.4051.2001.460
SRHG-085C-385A-O59.0006.7731.8422.0823.9742.3454.497
SRHG-085C-435A-O59.0006.7651.8392.0785.7673.6187.964
SRHG-085C-385A-O69.0008.2782.2282.5033.4951.8642.767
SRHG-085C-435A-O69.0008.2702.2252.4985.2873.1596.235
SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5144.6882.2772.536
SRHG-100C-435A-O118.00010.5012.4272.5096.8213.8546.662
SRHG-100C-485A-O118.00010.4602.4102.4889.1995.55911.261
SRHG-100C-385A-O218.000





SRHG-100C-435A-O218.00012.3243.1643.4595.7383.0644.567
SRHG-100C-485A-O218.00012.2843.1483.4388.1164.7869.166
SRHG-100C-535A-O218.00012.2423.4763.52410.7176.49813.408
SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.00014.3904.1724.22810.0305.84411.385
SRHG-100C-585A-O318.00014.3904.1724.22812.7987.75516.265
SRHG-100C-535A-O418.00016.3174.9285.2869.0005.1339.570
SRHG-100C-585A-O418.00016.3174.9285.28611.7687.04414.449
SRHG-130C-435A-O132.00015.6344.3434.9707.0643.9516.659
SRHG-130C-485A-O132.00015.5814.3234.94210.1906.19212.706
SRHG-130C-535A-O132.00015.5884.3254.94613.6918.67119.478
SRHG-130C-585A-O132.00015.6154.3364.96017.54611.39026.935
SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.00019.3615.1245.7006.2322.4912.377
SRHG-130C-485A-O232.00019.3085.1035.6729.3585.1678.424
SRHG-130C-535A-O232.00019.3155.1065.67612.8597.68915.196
SRHG-130C-585A-O232.00019.3435.1175.69016.71410.42322.653
SRHG-130C-635A-O232.00019.3945.1375.71720.92513.39730.798
SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.8578.0084.3406.733
SRHG-130C-535A-O532.00020.7875.9136.86011.5106.86713.506
SRHG-130C-585A-O532.00020.8145.9246.87515.3659.60220.963
SRHG-130C-635A-O532.00020.8655.9446.90119.57512.57529.108
SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.3289.8384.7755.306
SRHG-130C-585A-O632.00027.9527.4628.34213.6937.63512.763
SRHG-130C-635A-O632.00028.0037.4828.36917.90410.66720.908
SRHG-130C-685A-O632.00027.9737.4708.35322.41313.86929.631
SRHG-130C-735A-O632.000






Model NumberMax torque Nm5,5 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4972.3301.0791.355
SRHG-085S-335A-O29.0002.3351.1221.4744.0132.1433.194
SRHG-085S-385A-O29.0002.3251.1161.4635.8173.2705.167
SRHG-085S-435A-O29.0002.3201.1131.4587.8784.5547.420
SRHG-085S-335A-O39.0003.7971.8102.3553.1211.3011.428
SRHG-085S-385A-O39.0003.7871.8042.3454.9262.4653.401
SRHG-085S-435A-O39.0003.7821.8012.3396.9873.7605.654
SRHG-085S-335A-O59.0004.1192.0162.7082.7651.0441.038
SRHG-085S-385A-O59.0004.1102.0102.6974.5692.2393.011
SRHG-085S-435A-O59.0004.1042.0072.6926.6303.5375.264
SRHG-085S-385A-O69.0005.0212.4383.2434.0181.7041.911
SRHG-085S-435A-O69.0005.0152.4343.2376.0793.0314.163
SRHG-100S-385A-O118.0006.3422.7833.2595.3881.8481.829
SRHG-100S-435A-O118.0006.3362.7793.2527.8413.6164.510
SRHG-100S-485A-O118.0006.3112.7623.22510.5745.3557.498
SRHG-100S-535A-O118.0006.3152.7643.22813.6367.28010.844
SRHG-100S-585A-O118.0006.3152.7643.22815.8558.46212.978
SRHG-100S-385A-O218.000





SRHG-100S-435A-O218.0007.4633.5084.4836.5962.8023.149
SRHG-100S-485A-O218.0007.4383.4924.4569.3294.5676.137
SRHG-100S-535A-O218.0007.4413.4954.46012.3916.4999.484
SRHG-100S-585A-O218.0007.4413.4954.46014.8477.86211.938
SRHG-100S-535A-O318.0008.7364.3865.40011.0435.4037.337
SRHG-100S-585A-O318.0008.7364.3865.40014.0917.21710.482
SRHG-100S-535A-O418.0009.9065.1516.7509.9094.7286.167
SRHG-100S-585A-O418.0009.9065.1516.75012.9576.5429.312
SRHG-130S-435A-O132.0009.4954.7126.4398.1223.6924.524
SRHG-130S-485A-O132.0009.4624.6926.40311.7165.9808.452
SRHG-130S-535A-O132.0009.4664.6946.40815.7418.50712.852
SRHG-130S-585A-O132.0009.4834.7056.42620.17411.27517.697
SRHG-130S-635A-O132.0009.5154.7256.46125.01514.29322.988
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.00011.7375.6337.3877.1631.8671.815
SRHG-130S-485A-O232.00011.7045.6127.35110.7574.8005.743
SRHG-130S-535A-O232.00011.7085.6157.35614.7837.37610.144
SRHG-130S-585A-O232.00011.7255.6267.37419.21510.16714.988
SRHG-130S-635A-O232.00011.7575.6467.40924.05613.19620.280
SRHG-130S-685A-O232.00011.7385.6347.38829.24116.43225.947
SRHG-130S-485A-O532.00012.6336.3748.8849.2073.9984.620
SRHG-130S-535A-O532.00012.6386.3778.88913.2326.5839.020
SRHG-130S-585A-O532.00012.6556.3888.90817.6649.37313.865
SRHG-130S-635A-O532.00012.6866.4088.94222.50512.40219.156
SRHG-130S-685A-O532.00012.6686.3968.92227.69015.63724.824
SRHG-130S-735A-O532.00012.6476.3838.89933.26819.11130.920
SRHG-130S-535A-O632.00016.9338.17310.79111.3093.8713.832
SRHG-130S-585A-O632.00016.9508.18410.81015.7417.1248.676
SRHG-130S-635A-O632.00016.9818.20410.84420.58210.21913.968
SRHG-130S-685A-O632.00016.9628.19210.82325.76713.48719.635
SRHG-130S-735A-O632.00016.9428.17910.80131.34416.98325.732

Model NumberMax torque Nm6 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.3391.3742.607
SRHG-085C-335A-O29.0003.8521.0211.1373.9382.5075.699
SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8104.8752.9866.239
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0902.8521.5332.325
SRHG-085C-385A-O59.0006.7731.8422.0824.5652.7665.639
SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.0008.2782.2282.5034.0852.2953.910
SRHG-085C-435A-O69.0008.2702.2252.4986.0413.6957.693
SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5145.3912.8073.895
SRHG-100C-435A-O118.00010.5012.4272.5097.7184.5018.397
SRHG-100C-485A-O118.00010.4602.4102.48810.3146.35013.418
SRHG-100C-385A-O218.00012.3343.1683.4644.3081.8671.800
SRHG-100C-435A-O218.00012.3243.1643.4596.6363.7206.303
SRHG-100C-485A-O218.00012.2843.1483.4389.2315.58211.323
SRHG-100C-535A-O218.00012.2423.4763.52412.0037.38615.676
SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.00014.3904.1724.22811.3166.73213.653
SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.00016.3174.9285.28610.2866.02111.837
SRHG-100C-585A-O418.00016.3174.9285.28613.3068.10617.160
SRHG-130C-435A-O132.00015.6344.3434.9708.2444.8038.941
SRHG-130C-485A-O132.00015.5814.3234.94211.6567.23215.542
SRHG-130C-535A-O132.00015.5884.3254.94615.4769.93022.930
SRHG-130C-585A-O132.00015.6154.3364.96019.68012.89231.062
SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.000





SRHG-130C-435A-O232.00019.3615.1245.7007.4123.7294.659
SRHG-130C-485A-O232.00019.3085.1035.67210.8246.22911.260
SRHG-130C-535A-O232.00019.3155.1065.67614.6438.95618.648
SRHG-130C-585A-O232.00019.3435.1175.69018.84811.93226.780
SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.8579.4755.4069.570
SRHG-130C-535A-O532.00020.7875.9136.86013.2948.13516.957
SRHG-130C-585A-O532.00020.8145.9246.87517.49811.11025.090
SRHG-130C-635A-O532.00020.8655.9446.90122.08914.34733.970
SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32811.6226.1198.758
SRHG-130C-585A-O632.00027.9527.4628.34215.8269.17716.890
SRHG-130C-635A-O632.00028.0037.4828.36920.41712.45425.770
SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm6 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4972.6891.3091.747
SRHG-085S-335A-O29.0002.3351.1221.4744.5272.4653.756
SRHG-085S-385A-O29.0002.3251.1161.4636.4963.6945.909
SRHG-085S-435A-O29.0002.3201.1131.4588.7455.0948.367
SRHG-085S-335A-O39.0003.7971.8102.3553.6361.6401.990
SRHG-085S-385A-O39.0003.7871.8042.3455.6052.8934.143
SRHG-085S-435A-O39.0003.7821.8012.3397.8544.3026.601
SRHG-085S-335A-O59.0004.1192.0162.7083.2791.4061.600
SRHG-085S-385A-O59.0004.1102.0102.6975.2492.6683.753
SRHG-085S-435A-O59.0004.1042.0072.6927.4974.0796.211
SRHG-085S-385A-O69.0005.0212.4383.2434.6972.1492.653
SRHG-085S-435A-O69.0005.0152.4343.2376.9463.5785.111
SRHG-100S-385A-O118.0006.3422.7833.2596.1962.5332.713
SRHG-100S-435A-O118.0006.3362.7793.2528.8724.2775.638
SRHG-100S-485A-O118.0006.3112.7623.22511.8576.1638.899
SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4904.9511.3831.352
SRHG-100S-435A-O218.0007.4633.5084.4837.6273.4784.277
SRHG-100S-485A-O218.0007.4383.4924.45610.6125.3797.539
SRHG-100S-535A-O218.0007.4413.4954.46013.9517.47711.189
SRHG-100S-585A-O218.0007.4413.4954.46016.5408.87013.685
SRHG-100S-535A-O318.0008.7364.3865.40012.4596.2468.798
SRHG-100S-585A-O318.0008.7364.3865.40015.7848.22512.229
SRHG-100S-535A-O418.0009.9065.1516.75011.3255.5717.628
SRHG-100S-585A-O418.0009.9065.1516.75014.6507.55011.059
SRHG-130S-435A-O132.0009.4954.7126.4399.4784.5636.006
SRHG-130S-485A-O132.0009.4624.6926.40313.4027.04110.295
SRHG-130S-535A-O132.0009.4664.6946.40817.7939.78915.094
SRHG-130S-585A-O132.0009.4834.7056.42622.62612.80520.378
SRHG-130S-635A-O132.0009.5154.7256.46127.90516.09326.147
SRHG-130S-385A-O232.000





SRHG-130S-435A-O232.00011.7375.6337.3878.5203.2923.298
SRHG-130S-485A-O232.00011.7045.6127.35112.4435.8887.586
SRHG-130S-535A-O232.00011.7085.6157.35616.8348.67112.386
SRHG-130S-585A-O232.00011.7255.6267.37421.66811.70417.669
SRHG-130S-635A-O232.00011.7575.6467.40926.94615.00123.439
SRHG-130S-685A-O232.00011.7385.6347.38832.60418.52929.623
SRHG-130S-485A-O532.00012.6336.3748.88410.8935.0936.463
SRHG-130S-535A-O532.00012.6386.3778.88915.2847.87811.263
SRHG-130S-585A-O532.00012.6556.3888.90820.11710.90916.546
SRHG-130S-635A-O532.00012.6866.4088.94225.39514.20522.316
SRHG-130S-685A-O532.00012.6686.3968.92231.05317.73228.500
SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79113.3605.5556.074
SRHG-130S-585A-O632.00016.9508.18410.81018.1948.70111.357
SRHG-130S-635A-O632.00016.9818.20410.84423.47212.04517.127
SRHG-130S-685A-O632.00016.9628.19210.82329.13015.59623.311
SRHG-130S-735A-O632.000








Model NumberMax torque Nm7 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1552.9641.8193.816
SRHG-085C-335A-O29.0003.8521.0211.1374.8323.1387.429
SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.0006.2511.6371.8106.0563.8228.524
SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0903.7462.1814.055
SRHG-085C-385A-O59.0006.7731.8422.0825.7463.6037.924
SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.0008.2782.2282.5035.2673.1446.195
SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5146.7973.8366.614
SRHG-100C-435A-O118.00010.5012.4272.5099.5135.78211.869
SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.00012.3343.1683.4645.7143.0464.519
SRHG-100C-435A-O218.00012.3243.1643.4598.4305.0129.774
SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.000





SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.00016.3174.9285.28612.8597.79716.372
SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.00015.6344.3434.97010.6036.48513.505
SRHG-130C-485A-O132.00015.5814.3234.94214.5899.30521.215
SRHG-130C-535A-O132.00015.5884.3254.94619.04512.44529.833
SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.00019.3755.1295.7076.2002.4312.315
SRHG-130C-435A-O232.00019.3615.1245.7009.7715.4689.223
SRHG-130C-485A-O232.00019.3085.1035.67213.7578.32816.934
SRHG-130C-535A-O232.00019.3155.1065.67618.21211.48325.551
SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.85712.4087.50615.243
SRHG-130C-535A-O532.00020.7875.9136.86016.86310.66123.861
SRHG-130C-585A-O532.00020.8145.9246.87521.76514.11933.344
SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32815.1918.71915.661
SRHG-130C-585A-O632.00027.9527.4628.34220.09312.22425.144
SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm7 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4973.4071.7632.533
SRHG-085S-335A-O29.0002.3351.1221.4745.5553.1074.880
SRHG-085S-385A-O29.0002.3251.1161.4637.8554.5397.394
SRHG-085S-435A-O29.000





SRHG-085S-335A-O39.0003.7971.8102.3554.6642.2993.114
SRHG-085S-385A-O39.0003.7871.8042.3456.9633.7455.628
SRHG-085S-435A-O39.0003.7821.8012.3399.5885.3848.496
SRHG-085S-335A-O59.0004.1192.0162.7084.3072.0722.724
SRHG-085S-385A-O59.0004.1102.0102.6976.6073.5225.238
SRHG-085S-435A-O59.0004.1042.0072.6929.2315.1628.106
SRHG-085S-385A-O69.0005.0212.4383.2436.0553.0164.137
SRHG-085S-435A-O69.0005.0152.4343.2378.6804.6667.006
SRHG-100S-385A-O118.0006.3422.7833.2597.8133.5984.479
SRHG-100S-435A-O118.0006.3362.7793.25210.9365.5837.893
SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4906.5672.7833.118
SRHG-100S-435A-O218.0007.4633.5084.4839.6904.7966.532
SRHG-100S-485A-O218.0007.4383.4924.45613.1766.99110.342
SRHG-100S-535A-O218.000





SRHG-100S-585A-O218.000





SRHG-100S-535A-O318.0008.7364.3865.40015.2917.93211.721
SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.0009.9065.1516.75014.1577.25710.551
SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.0009.4954.7126.43912.1916.2808.971
SRHG-130S-485A-O132.0009.4624.6926.40316.7749.15213.981
SRHG-130S-535A-O132.0009.4664.6946.40821.89612.35019.579
SRHG-130S-585A-O132.0009.4834.7056.42627.53215.86125.740
SRHG-130S-635A-O132.0009.5154.7256.46133.68519.69132.466
SRHG-130S-385A-O232.00011.7455.6397.3967.1261.8271.775
SRHG-130S-435A-O232.00011.7375.6337.38711.2325.1096.263
SRHG-130S-485A-O232.00011.7045.6127.35115.8158.02911.272
SRHG-130S-535A-O232.00011.7085.6157.35620.93711.24616.871
SRHG-130S-585A-O232.00011.7255.6267.37426.57414.76923.032
SRHG-130S-635A-O232.00011.7575.6467.40932.72718.60629.757
SRHG-130S-685A-O232.00011.7385.6347.38839.33022.71836.976
SRHG-130S-485A-O532.00012.6336.3748.88414.2657.23610.149
SRHG-130S-535A-O532.00012.6386.3778.88919.38710.45215.748
SRHG-130S-585A-O532.00012.6556.3888.90825.02313.97321.908
SRHG-130S-635A-O532.00012.6866.4088.94231.17617.80828.634
SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79117.4648.23410.559
SRHG-130S-585A-O632.00016.9508.18410.81023.10011.81016.720
SRHG-130S-635A-O632.00016.9818.20410.84429.25315.67323.445
SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000








Model NumberMax torque Nm8,5 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085C-280A-O29.0003.8871.0351.1553.9012.4825.629
SRHG-085C-335A-O29.000





SRHG-085C-385A-O29.000





SRHG-085C-435A-O29.000





SRHG-085C-385A-O39.000





SRHG-085C-435A-O39.000





SRHG-085C-335A-O59.0006.7891.8482.0905.0883.1376.650
SRHG-085C-385A-O59.000





SRHG-085C-435A-O59.000





SRHG-085C-385A-O69.000





SRHG-085C-435A-O69.000





SRHG-085C-485A-O69.000





SRHG-100C-385A-O118.00010.5112.4312.5148.9055.35010.693
SRHG-100C-435A-O118.000





SRHG-100C-485A-O118.000





SRHG-100C-385A-O218.00012.3343.1683.4647.8224.5768.598
SRHG-100C-435A-O218.000





SRHG-100C-485A-O218.000





SRHG-100C-535A-O218.000





SRHG-100C-585A-O218.000





SRHG-100C-535A-O318.000





SRHG-100C-585A-O318.000





SRHG-100C-535A-O418.000





SRHG-100C-585A-O418.000





SRHG-130C-435A-O132.00015.6344.3434.97014.1428.98920.350
SRHG-130C-485A-O132.00015.5814.3234.94218.98912.40629.725
SRHG-130C-535A-O132.000





SRHG-130C-585A-O132.000





SRHG-130C-635A-O132.000





SRHG-130C-385A-O232.00019.3755.1295.7078.9724.8857.677
SRHG-130C-435A-O232.00019.3615.1245.70013.3108.00916.069
SRHG-130C-485A-O232.00019.3085.1035.67218.15611.44325.443
SRHG-130C-535A-O232.000





SRHG-130C-585A-O232.000





SRHG-130C-635A-O232.000





SRHG-130C-685A-O232.000





SRHG-130C-485A-O532.00020.7805.9116.85716.80710.62123.753
SRHG-130C-535A-O532.00020.7875.9136.86022.21614.43734.216
SRHG-130C-585A-O532.000





SRHG-130C-635A-O532.000





SRHG-130C-685A-O532.000





SRHG-130C-735A-O532.000





SRHG-130C-535A-O632.00027.9257.4518.32820.54412.54426.016
SRHG-130C-585A-O632.000





SRHG-130C-635A-O632.000





SRHG-130C-685A-O632.000





SRHG-130C-735A-O632.000






Model NumberMax torque Nm8,5 BAR SIMMETRICAL - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
SRHG-085S-280A-O29.0002.3561.1361.4974.4852.4393.710
SRHG-085S-335A-O29.0002.3351.1221.4747.0984.0686.566
SRHG-085S-385A-O29.0002.3251.1161.4639.8925.8079.620
SRHG-085S-435A-O29.000





SRHG-085S-335A-O39.0003.7971.8102.3556.2063.2714.800
SRHG-085S-385A-O39.0003.7871.8042.3459.0005.0187.854
SRHG-085S-435A-O39.000





SRHG-085S-335A-O59.0004.1192.0162.7085.8503.0474.410
SRHG-085S-385A-O59.0004.1102.0102.6978.6444.7967.465
SRHG-085S-435A-O59.000





SRHG-085S-385A-O69.0005.0212.4383.2438.0934.2986.364
SRHG-085S-435A-O69.000





SRHG-100S-385A-O118.0006.3422.7833.25910.2375.1427.129
SRHG-100S-435A-O118.000





SRHG-100S-485A-O118.000





SRHG-100S-535A-O118.000





SRHG-100S-585A-O118.000





SRHG-100S-385A-O218.0007.4693.5124.4908.9924.3535.768
SRHG-100S-435A-O218.0007.4633.5084.48312.7856.7469.915
SRHG-100S-485A-O218.000





SRHG-100S-535A-O218.000





SRHG-100S-585A-O218.000





SRHG-100S-535A-O318.000





SRHG-100S-585A-O318.000





SRHG-100S-535A-O418.000





SRHG-100S-585A-O418.000





SRHG-130S-435A-O132.0009.4954.7126.43916.2608.83113.419
SRHG-130S-485A-O132.0009.4624.6926.40321.83212.31019.509
SRHG-130S-535A-O132.0009.4664.6946.40828.05116.18326.307
SRHG-130S-585A-O132.0009.4834.7056.42634.89120.44133.784
SRHG-130S-635A-O132.000





SRHG-130S-385A-O232.00011.7455.6397.39610.3144.5105.258
SRHG-130S-435A-O232.00011.7375.6337.38715.3017.70410.710
SRHG-130S-485A-O232.00011.7045.6127.35120.87311.20616.801
SRHG-130S-535A-O232.00011.7085.6157.35627.09215.09223.598
SRHG-130S-585A-O232.00011.7255.6267.37433.93319.35731.075
SRHG-130S-635A-O232.000





SRHG-130S-685A-O232.00011.7385.6347.38849.42028.99748.004
SRHG-130S-485A-O532.00012.6336.3748.88419.32310.41215.677
SRHG-130S-535A-O532.00012.6386.3778.88925.54114.29622.475
SRHG-130S-585A-O532.00012.6556.3888.90832.38218.55929.952
SRHG-130S-635A-O532.000





SRHG-130S-685A-O532.000





SRHG-130S-735A-O532.000





SRHG-130S-535A-O632.00016.9338.17310.79123.61812.13717.286
SRHG-130S-585A-O632.00016.9508.18410.81030.45916.42924.763
SRHG-130S-635A-O632.000





SRHG-130S-685A-O632.000





SRHG-130S-735A-O632.000






CICLO DI VERNICIATURA OMAL
La verniciatura degli attuatori Heavy Duty (Standard OMAL), riportata in tabella, consente l’installazione degli attuatori in ambienti esterni: impianti chimici, gasdotti, raffinerie e applicazioni Off-Shore. Disponibili a richiesta verniciature in accordo a specifiche cliente.


PREPARAZIONE DELLA SUPERFICIE SABBIATURA GRADE SA 2.1/2
Rivestimento  Tipo di vernice   SPESSORE
Prima mano Zincante inorganico  75 µ
Mano intermedia Epoxy110 µ
Mano finale Poliuretano 40 µ

SPESSORE TOTALE  225 µ
Verniciatura Standard: RAL

CORPO CENTRALE - CONFIGURAZIONI DISPONIBILI

Canted design
Coppia di spunto di apertura (BTO) molto alta, con un forte calo del valore della coppia erogata nella fase conclusiva (ETO) della manovra di apertura. Coppia di spunto di chiurura (BTC) nettamente inferiore rispetto a quella di apertura (BTO).

Symmetrical design
Curva della coppia più equilibrata, i valori di BTO-ETO BTC-ETC sono simili.

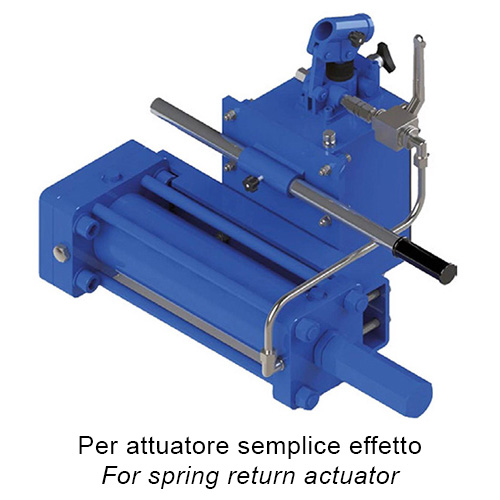

COMANDO IDRAULICO MANUALE D’EMERGENZA

Pompa
Cilindro idraulico
Serbatoio Olio
Valvola di non ritorno
Valvola di sicurezza

COMANDO MANUALE D’EMERGENZA A VITE PER ATTUATORE SEMPLICE EFFETTO

Connettore - Giunto

Il design dell’attuatore ha previsto connessioni conformi ai più recenti Standard Internazionali per consentire ed agevolare il montaggio su valvole e accessori. Omal completa il suo servizio con kit di montaggio, connettori e giunti a richiesta.

Design Costruttivo Modulare

Il design modulare degli attuatori HEAVY DUTY Omal garantisce una completa versatilità applicativa.
La costruzione modulare permette di assemblare i componenti in base ai requisiti dell’applicazione.

X CHIUDI

NEXT EVENT

OMC 2019
Ravenna, 27-29 marzo 2019
